LP-865

Medium-intensity Type A Solar Powered Aviation Obstruction Light

• ICAO Certificate from USA Intertek
• 100,000 hours LED
• 3 to 5 years Lithium iron phosphate battery
• 7 days Autonomy without sunlight
• 10 years solar module(solar panel)
• Advance Reflector device

Description
Features
Specification

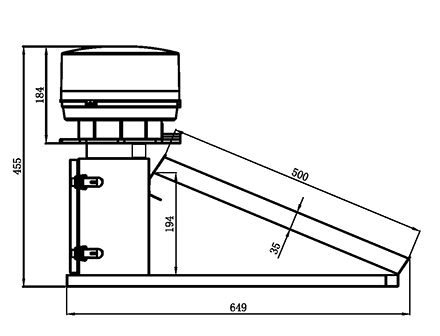

Dimension
Download

Application

LP-865 Medium-intensity Type A Solar Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, any other potentially hazardous obstructions between 105m and 150m to air traffic with a flashing white safety light,especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Compliance Standard

• International Civil Aviation Organization (ICAO),Annex 14,Volume 1,Eighth Edition,dated July 2018

• Annex 14 Aerodromes Volume Aerodrome Design And Operations

Main Function

• Built-in photocell can let aviation light work all day(24hours)

• GPS Synchronization function

Name	Main Parameter
Mode	LP-865
Standard	ICAO (Aerodromes Annex 14) Medium-intensity Type A, FAA L-865
Battery	1.Capacity: -48V,30Ah -Kind:Li Battery
Solar Panel(Solar Module)	1.Capacity:66V,50W
Solar Panel(Solar Module)	2.Type:Mono Crystalline
Lamp on Top of Solar Light	1.Operating voltage:DC48V
	2.Light intensity: 2,000cd±25％,20,000cd±25％
	3.Flashing rate:20-60times/minute
	4.Light Source:LED.
	6.Emitting Color:White
	7.Cover:PC Base:Aluminum Alloy
	8.Built-in photocell:photocell can let light work all day(24hours)
Battery Case	Material:SS 304stainless Steel
Overall Size(mm)	525 by 482 by 455

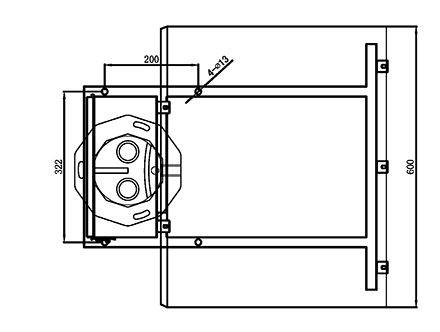

Installation Size(mm)	200 by 322 by 13
Total Weight	16.5Kg(±1Kg)
Autonomy in raining day	7days
Ambient Temperature	-40℃~+70℃
Wind load	80m/s
Protection Standard	IP65
