Application

LP-810/S Low-intensity Solar Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine,other potentially hazardous obstructions within 45 meters to air traffic with a steady burning red safety light,especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection y light.

Compliance Standard

• Switch converting between steady and flashing

• Ajustable flashing rate from 20times/min,30times/min,40times/min,50times/m to 60times/min

Cases

• International advanced solar panel reaching at least 10 years service life.
• Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
• Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
• International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
• Clean, renewable, green and reliable energy source
• Dusk-to-dawn operation: New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
• At least 5 days autonomy.
• Recyclable 3 to 5 years Lithium Iron Phosphate batteries(LiFePO₄) with the lightest environmental.
•  Small volume especially being suitable for Telecommunication Tower and Electric installation way.

Name	Data
Model	LP-810/S
Standard	ICAO (Aerodromes Annex 14) Low-intensity Type A and FAA L-810
Light intensity	≥10cd
Flash rate	Steady-burning mode or  Flashing mode,20 to 60times/min
Light source	LED,≥100,000hours
Operating voltage	DC12V(Solar powered Way)
Battery	-Lithium iron phosphate battery -Capacity:12V,12Ah -Battery Replace:Yes
Power Source(Solar Module)	-Mono-crystalline silicon --Solar Efficiency:19％
Power consumption	≤3W

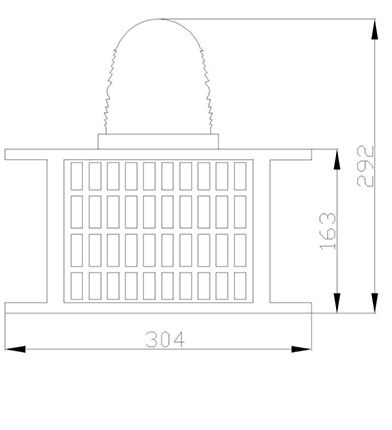

Overall size(mm)	304 by 304 by 292

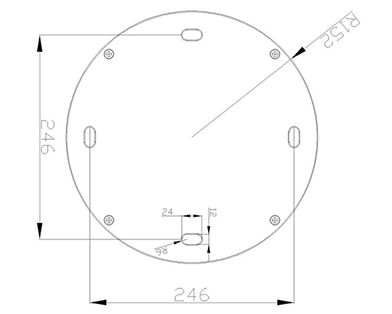

Installation size(mm)	246 by 246 by 12
Vertical degree	≥10°
Horizontal degree	360°
Material	-Housing: PC -Base: die casting aluminum
Weight	4.9Kg(±0.5KG)
Emitting color	Red
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP65

    Datasheet of LP-810/S Low-intensity Type A Solar Powered Aviation Obstruction Light
