Application

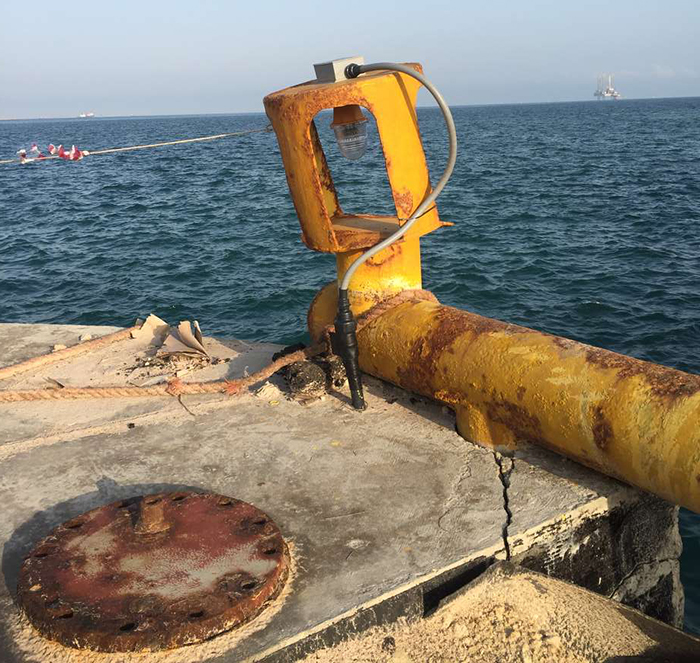

LP-ML/4 LED Marine Lanterns is commonly used on both fixed and floating structures for Aids to Navigation.

Compliance Standard

IALA

Main Function

• GPS synchronization function
• Photocell function
• 256 light character

Case

• Up to 4 Nautical Miles (Tc=0.74)
• PC material with good impact protection strength, thermal stability, high transmittance.
• Bird spike against bird drop.
• International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
• LED based on obstruction light last 15 times longer than traditional light source,incandescent light.
• About 96% less power than 116W incandescent light.
• Major Maintenance Cost Saving,Surge protection device inside light.
• Strong corrosion resistance, Shock and Vibrations protection and UV protection.
• Dawn to Dusk operating:Built-in photocell can let light work automatically at night,poor visibility during the day.
• IP67 protection standard, Full sealing structure.

Name	Data
Model	LP-ML/4
Standard	IALA
Light intensity	5cd(2NM),15cd(3NM),38cd(4NM)
Flash rate	Steady or Flashing mode
Light source	LED
Service life of LED	≥100,000hours
Operating voltage	AC220V（Option DC12V,DC24V）
Power consumption	3W

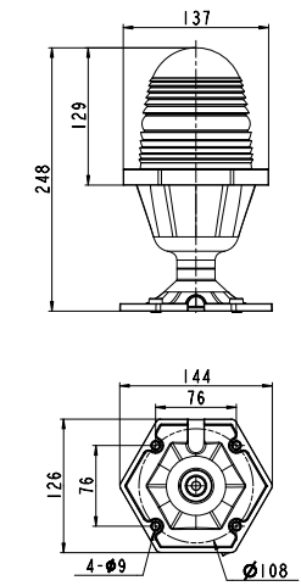

Overall size(mm)	137 by 126 by 248
Installation size(mm)	76 by 76 by 9
Vertical degree	3°
Horizontal degree	360°
Material	-Housing: PC -Base: die casting aluminum
Weight	1Kg
Emitting color	Green,White,Red,Amber(Yellow)
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP67
Control Way	Photocell way.This light can work at night or poor visibility daytime

    Datasheet of LP-ML/4 LED Marine Lanterns
