Application

This product is used in helicopter taking off and landing area at night or in the daytime with poor visibility.It is used for shining yellow,White or green light to accurately indicate the threshold of taking off and landing area.

Compliance Standard

• Option green,yellow or white

• Option built-in photocell can let perimeter light work at night and poor visibility daytime

• PC material with good impact protection strength, thermal stability, high transmittance.
• International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
• LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
• About 96% less power than 116W incandescent light.
• Major maintenance cost saving,Surge protection device inside light.
• Strong corrosion resistance, Shock and Vibrations protection and UV protection.
• 3/4inch installation size and small volume especially being suitable for telecommunication tower and flag-pole installation way.

Name	Data
Mode	LP-E
Light intensity	≥25cd
Light source	LED
Service life of LED	100, 000hours
Signal mode	Steady-burning way
Operating voltage	AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
Emitting color	Yellow,White or Green
Power consumption	4W

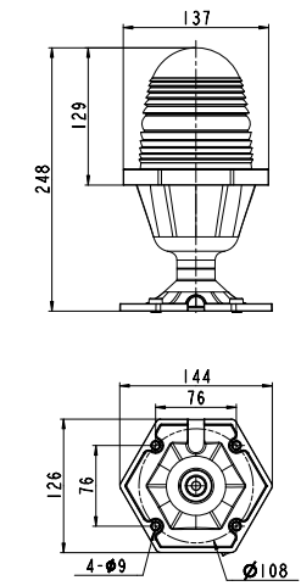

Overall size(mm)	137 by 126 by 248
Installation size(mm)	76 by 76 by 9
Weight	1kg

    Datasheet of LP-E Heliport Elevated Perimeter Light
