Application

This product is used in helipad apron at night or in the daytime with poor visibility.It is a red steady light with min 10cd.

Compliance Standard

• Option built-in photocell can let perimeter light work at night and poor visibility daytime

• Steady red light with min 10cd

• PC material with good impact protection strength, thermal stability, high transmittance.
• International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
• LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
• About 96% less power than 116W incandescent light.
• Major maintenance cost saving,Surge protection device inside light.
• Strong corrosion resistance, Shock and Vibrations protection and UV protection.
• 3/4inch installation size and small volume especially being suitable for flag-pole installation way.

Name	Data
Mode	LP-A
Light intensity	≥25cd
Light source	LED
Service life of LED	100, 000hours
Signal mode	Steady-burning way
Operating voltage	AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
Emitting color	Red
Power consumption	4W

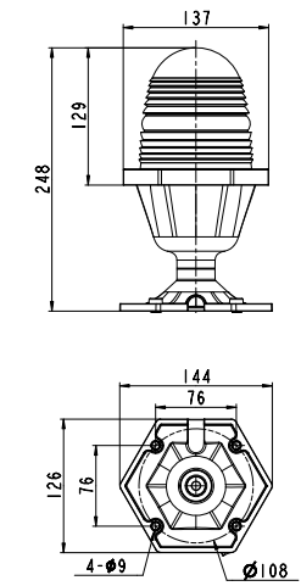

Overall size(mm)	137 by 126 by 248
Installation size(mm)	76 by 76 by 9
Weight	1kg

    Datasheet of LP-A Heliport Elevated Apron Edge Light
