Application

LP-864/BS Medium-intensity Type B Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine,any other potentially hazardous obstructions between 45m and 105m to air traffic with a flashing red safety light,especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Compliance Standard

• Built-in photocell can let aviation light work at night and poor visibility daytime

• GPS Synchronization function

• International advanced solar panel reaching at least 10 years service life.
•  Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
• Low power consumption profession flash switch.
• International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
• Strong impact lamp shape with PC material.
• Strong corrosion resistance and UV protection.
• At least 7 days autonomy.(optional 15days)
• Having lightning-protection function.
• Side open of battery box can be open for maintenance convenience very easily.
• New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.

Name	Data
Model	LP-864/BS
Standard	ICAO (Aerodromes Annex 14) Medium-intensity Type B and FAA L-864
Light intensity	2000cd±25%
Flash rate	Steady-burning mode or Flashing mode (20-60times/minute)
Light source	LED,≥100,000hours
Operating voltage	DC12V(Solar powered Way)
Battery	-Lead Acid Battery or Lithium iron phosphate battery -Capacity:12V,26Ah -Battery Replace:Yes
Power Source(Solar Module)	-Mono-crystalline silicon --Solar Efficiency:14％
Power consumption	20W

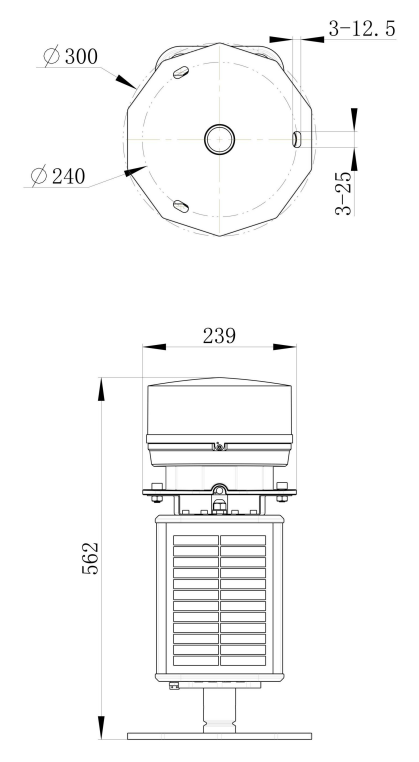

Overall size(mm)	300 by 300 by 562
Installation size(mm)	208 by 208 by 1 2
Vertical degree	≥10°
Horizontal degree	360°
Material	-Housing: PC -Base: die casting aluminum
Weight	12Kg
Emitting color	Red
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP65

    Datasheet of LP-864/BS Medium-intensity Type B Solar Powered Aviation Obstruction Light
