Application

Medium-intensity Dual Aviation Obstruction Light used in Tower Crane, Wind Turbine, High Mast, Metallurgies, Towers(Telecom, GSM, Electric), Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 150m to air traffic with a flashing red and white safety light.

Compliance Standard

• Red,2,000cd,20times/min or 30times/min at night;White,20,000cd,40times/min daytime

• GPS Synchronization function

Case

• Good impact protection strength, thermal stability, high transmittance.
• Built-in circuit protect LED, extremely reliable and cost saving.
• Shockproof and corrosion resistant. Working environment temperature: -40℃ ~ +60℃.It can be used in very poor conditions.
• LED is special red & white color for Aviation Obstruction Light, Typical LED lifetime is more than 100,000 hours.
• Resistant to heavy rain or storms and corrosion.
• Free maintenance and aluminum alloy Material.
• 95% less power consumption than incandescent light.
• Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
• Option GPS synchronization function.

Name	Data
Model	LP-86/V
Standard	ICAO (Aerodromes Annex 14) Medium-intensity Type B
Light intensity	2,000cd ±25%(Night) to 20,000cd ±25%(,Twilight,Daytime)
Flash rate	20times/minute(Night);40times/minute(Daytime)
Light source	LED
Service life of LED	≥100,000hours
Operating voltage	AC220V (option voltage,eg. AC120V,  AC110V, DC48V)
Power consumption	15W(At night),40W(Daytime)

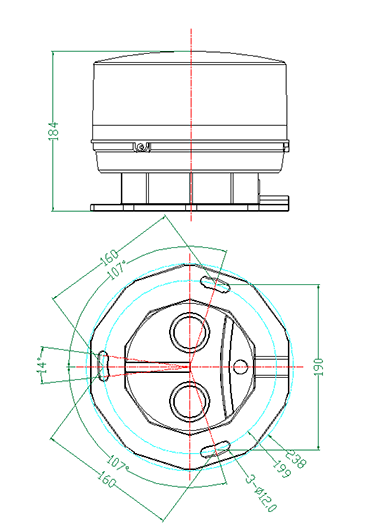

Overall size(mm)	238 by 238 by 184
Installation size(mm)	190 by 160 by 12
Vertical degree	3°
Horizontal degree	360°
Material	-Housing: PC -Base: die casting aluminum
Weight	3Kg
Emitting color	Red (Night); White (Daytime).
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP65









    Datasheet of LP-86/V Medium-intensity Dual Aviation Obstruction Light
