Application

Medium-intensity Type B Double Aviation Obstruction Light used in Tower Crane, Wind Turbine, High Mast, Metallurgies, Towers(Telecom, GSM, Electric), Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 45m and 105m to air traffic with a flashing red safety light.

Compliance Standard

• Built-in photocell can let aviation light work at night and poor visibility daytime

• GPS Synchronization function

• Main(Service)-standby way

• Two light working at the same time

Case

• Good impact protection strength, thermal stability, high transmittance.
• Built-in circuit protect LED, extremely reliable and cost saving.
• Shockproof and corrosion resistant. Working environment temperature: -40℃ ~ +60℃.It can be used in very poor conditions.
• LED is special red color for Aviation Obstruction Light. Typical LED lifetime is more than 100,000 hours.
• Resistant to heavy rain or storms and corrosion.
• Free maintenance and aluminum alloy Material.
• 95% less power consumption than incandescent light
• Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
• Main(Service)-standby way.As usual,Main(Service) light works,standby light does not operate;Once Main(Service) light fails,standby light will work automatically.

Name	Data
Model	LP-864/BD
Standard	ICAO (Aerodromes Annex 14) Medium-intensity Type B
Light intensity	2,000cd ±25%
Flash rate	Flashing mode,20 to 60times/min
Light source	LED
Service life of LED	≥100,000hours
Operating voltage	AC220V (option voltage,eg. AC120V,  AC110V, DC48V)
Power consumption	≤20W

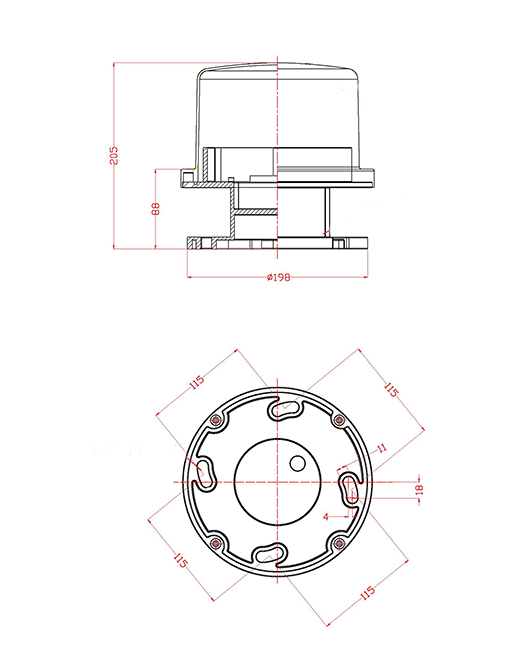

Overall size(mm)	198 by 198 by 205
Installation size(mm)	115 by 115 by M10
Vertical degree	3°
Horizontal degree	360°
Material	-Housing: PC -Base: die casting aluminum
Weight	2.6Kg
Emitting color	Red
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP65









    Datasheet of LP-864/BD Medium-intensity Type B Twin Aviation Obstruction Light
