Compliance Standard

• Built-in photocell can let aviation light work all day(24hours)

• GPS Synchronization function on same layer

• 2,000cd at night,20,000cd twilight,100,000cd daytime

• Strong efficiency transmission.
• International-advanced big power and precision integrated chip LED with high brightness and service life of light source reaching 100,000hours.
• The circuit of the light has surge protection whose lightning proof ability is in 7.5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
• Strong corrosion resistance, Shock and Vibrations protection and UV protection.
• Resistant to heavy rain or storms and corrosion.
• Automatically changing light intensity, day/twilight/night intensity operating by photocell.

Name	Data
Model	LP-857
Standard	ICAO (Aerodromes Annex 14) High-intensity Type B, FAA L-857
Light intensity	-2,000cd ±25%(Night) -20,000cd ±25% (Twilight) -100,000cd ±25%(Daytime)
Flash rate	40 to 60 times/minute
Light source	LED
Service life of LED	≥100,000hours
Operating voltage	AC220V (option voltage,eg. AC120V,  AC110V, DC48V)
Power consumption	65W

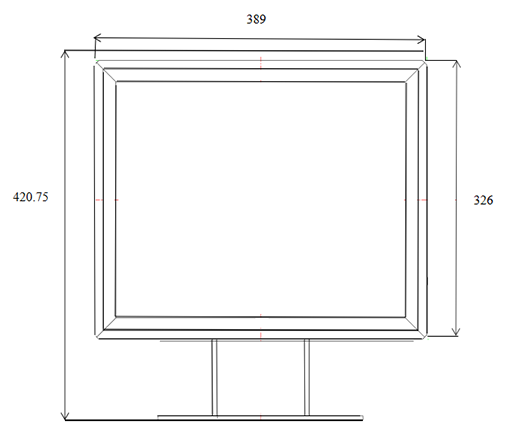

Overall size(mm)	389×153×326

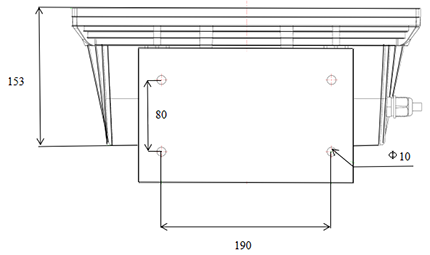

Installation size(mm)	190mm×80mm×12
Vertical degree	3°~7°
Horizontal degree	90°~120°
Material	-Housing: Glass -Base: die casting aluminum
Weight	8.5Kg
Emitting color	White
Ambient temperature	-40℃~+60℃
Wind load	80m/s
Protection standard	IP65

    Datasheet of LP-857 High-intensity Type B Aviation Obstruction Light
